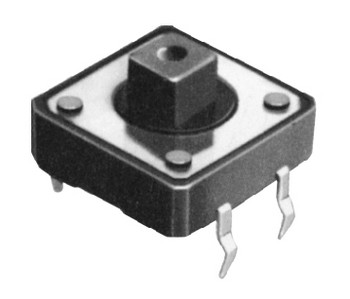

| KFC-A12-05 |
|
|
|
|
|
Technological Parameter |
| |
|
| Temperature |
-25 85 |
| Rated Load |
DC 12V 0.1A |
| Contact resistance |
 0.03 |
| Insulation resistance |
 100M |
| Withstand voltage |
AC 250V(50Hz) 1min |
| Actuating Force |
1.3 0.5N |
| Life |
100000Time |
| Remark |
1.The Length(L)can be set at the full discretion of the consumer.2.The head can be shaped either round(like or square(like ). |
|
|
|
|
|
|
|
|
|
|
