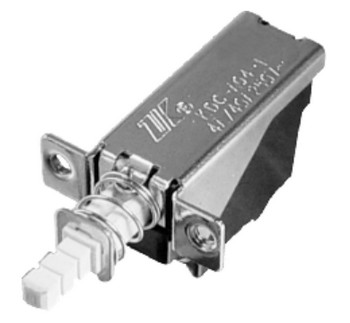

| KDC-A04-1 |
|
|
|
|
|
Technological Parameter |
| |
|
| Envlronmental Condltions |
-25 85 , 95%(40) |
| Contact resistance |
0.03 |
| Insulation resistance |
 100M |
| Withstand voltage |
AC 1500V,AC 3000V1min |
| Actuating Force |
28N |
| Life |
10000Time |
| Note |
1.Rated(AC 250V) 2A/8A,4A/32A,5A/80A,8A/112A

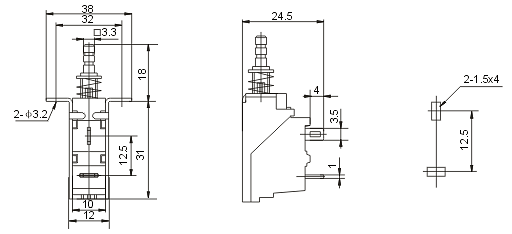

2.The spacing between the mounting holes is set according to the requtrements of the customers
3.There are 2types of mounting hole:unthreaded and threaded
4.The leading-out terminal is elther an insert-in type or a welding type. |
|
|
|
|
|
|
|
|
|
|
